Cal Z - design by Andrea Rovatti

CAL Z is registered in the Directory of Medical Devices of the Ministry of Health with assigned sequence number 1117258. CAL Z is a Medical Device marked CE according to Directive 93/42CEE and is manufactured and tested in Italy.

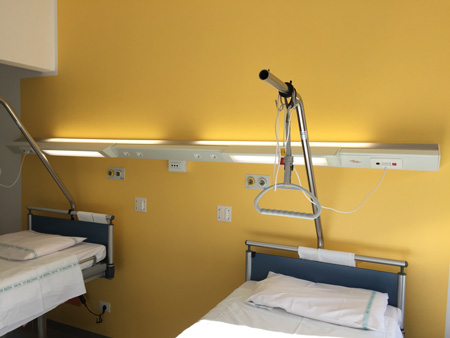

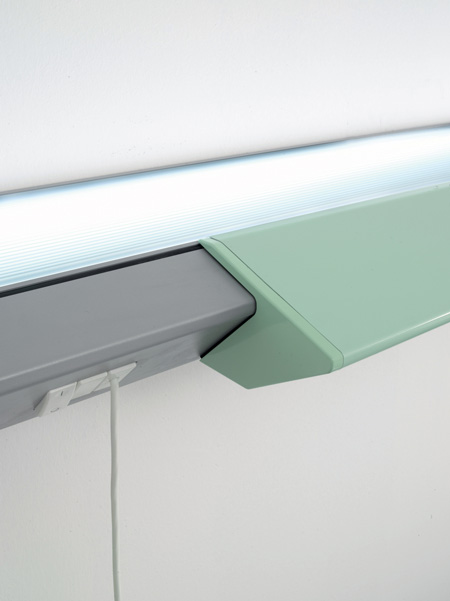

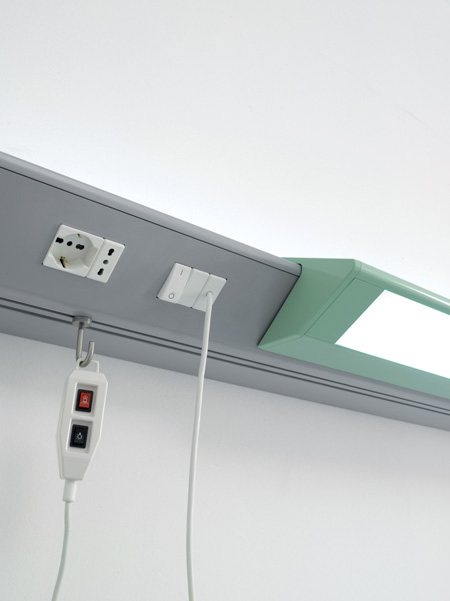

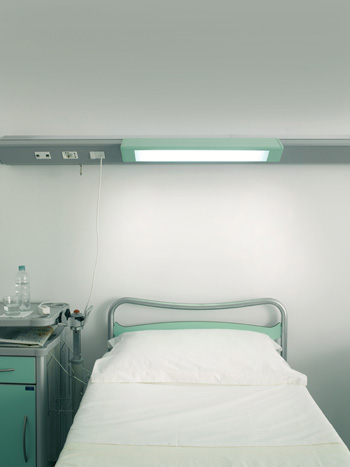

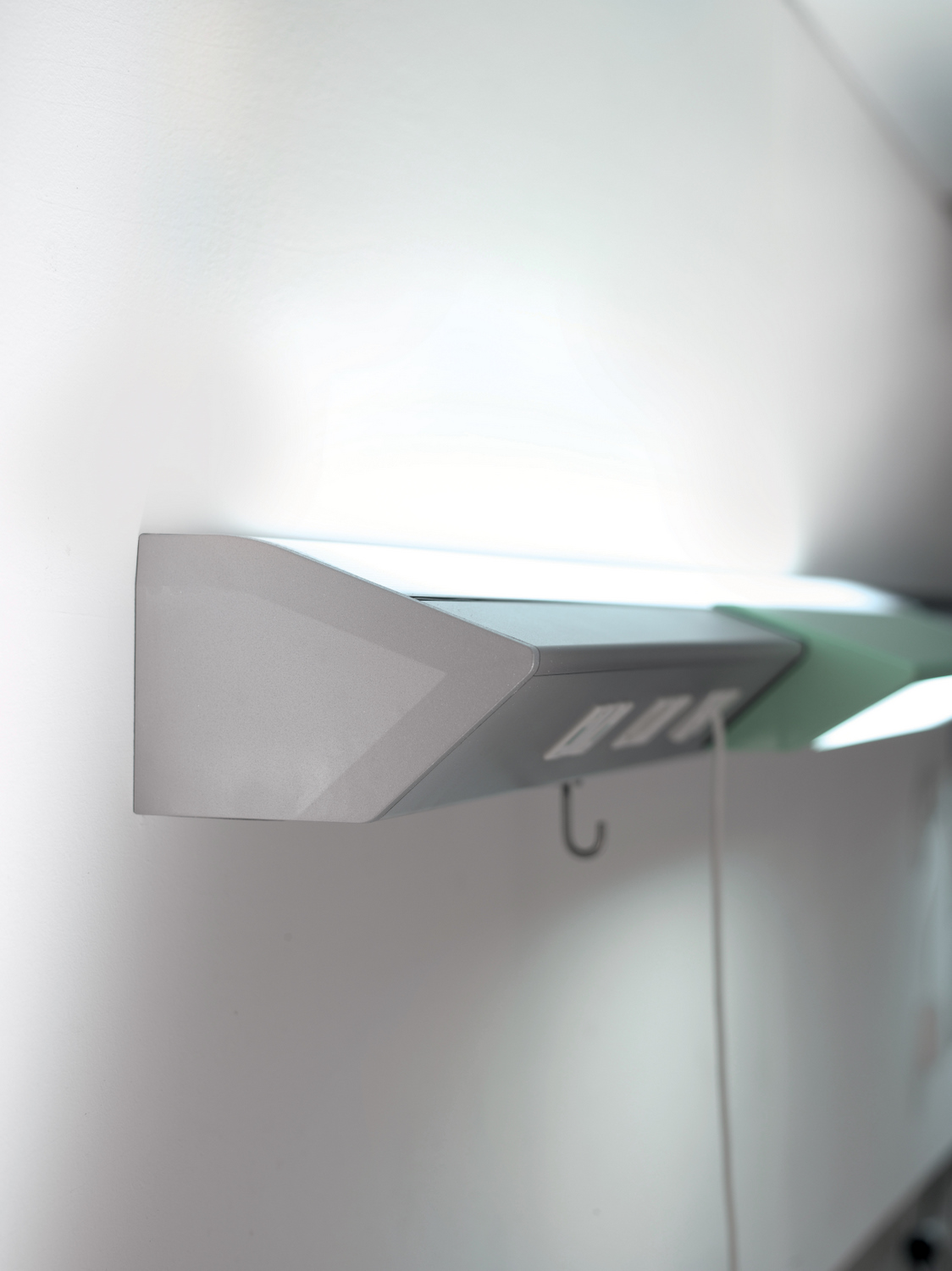

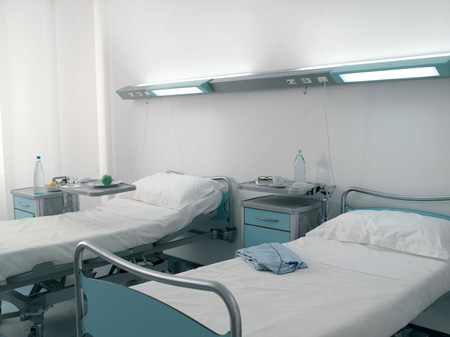

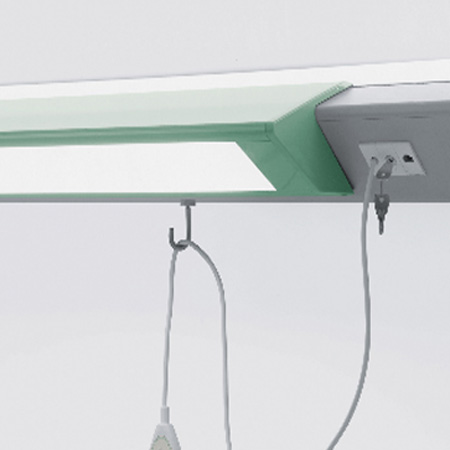

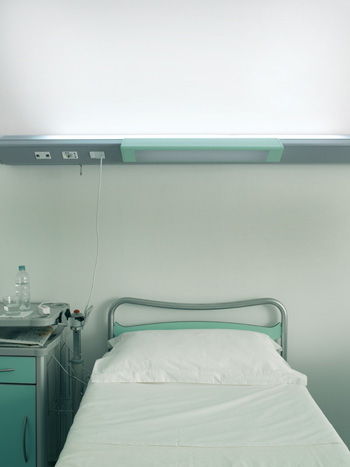

CAL Z is a product with a modern design that blends aesthetics that can be customised with different finishes; it is made of extruded aluminium with a wide section so as to offer greater space inside the unit for the passage of pipes for medical gases and, in general, a more convenient access to the systems. Characteristics of CAL Z module dedicated to direct lighting, for reading and for medical examinations, customisable with RAL colours chosen from a wide range.

LIGHTING
LED lighting is made with high-efficiency modules. LED Modules are sized by our technical office to provide the best light emissions based on the characteristics of the environment.

modules are installed in the unit, which guarantee a very long life of the product with high luminous efficiency and low consumption (more light generated with less power). The light is clear and brilliant, the perception of the human eye is of natural illumination. The color temperature is calibrated to provide the best compromise between patient well-being and the operational need of the ward. Light emission, on request, can be dimmable by button, DALI protocol, 1-10V switch, or smartphone/tablet APP.

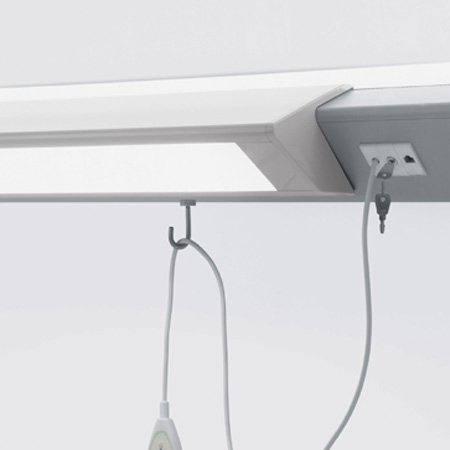

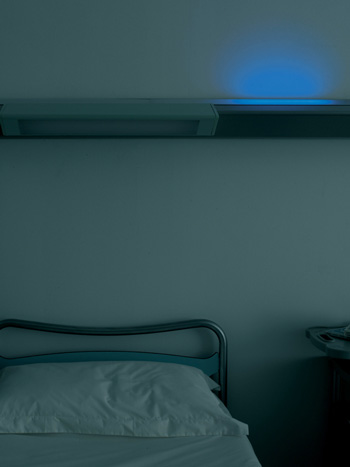

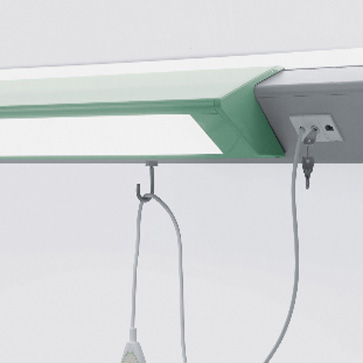

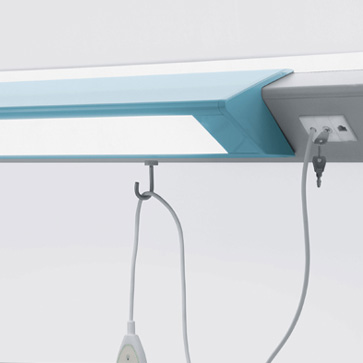

General indirect lighting is usually supplied by LED Modules with different power and length according to the needs and the size of the unit. A snap-fixed cover sheet of lined polycarbonate protects from dust. The reading and medical examination light is usually supplied by LED Modules. With CAL Z there is also the possibility to mount a blue LED strip, to help with orientation during the night hours.

BODY

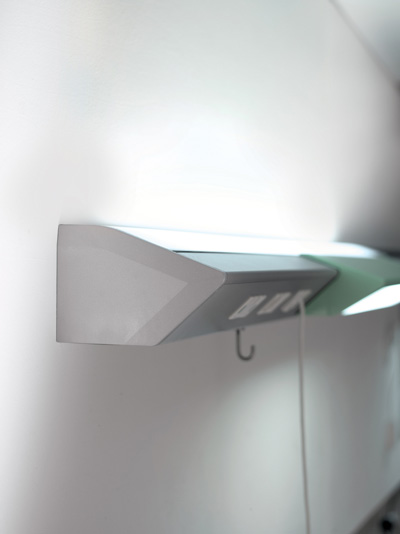

The body is a modular unit consisting of a main unit and a protruding part, made of extruded coated aluminium with flame retardant, ABS end caps, painted the same colour as the module to which they are applied.

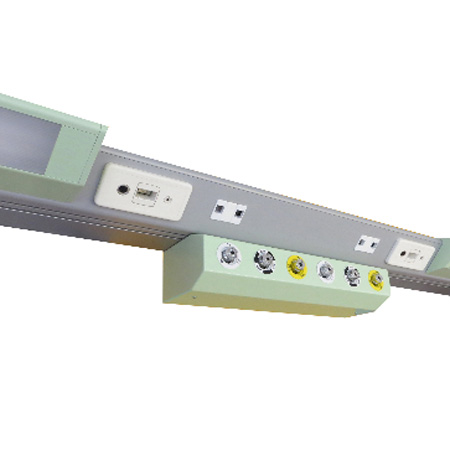

The main unit is supplied as standard in RAL 9006 gray colour while the protruding part can be painted in various colours chosen from a range of RAL colours. The CAL Z bed head units can be equipped with a distribution system for medical gases; in this case they are equipped with a box for the gas outlets.

INSTALLATION
CAL Z is fixed to the wall, using screws and wall plugs suitable for the type of masonry at a recommended height of 1750 mm. (Cal Z axis) from the ground.

EQUIPMENT AND SYSTEMS
CAL Z is an electric unit ready for connection to a central point, with sockets and switches already wired to the central terminal connection. The electrical equipment can be chosen from among all the series on the market, without any constraint except to verify its compatibility, in terms of mechanical size, with the structure and the size of CAL Z.

PLANNING
For the proper identification of the primary characteristics of CAL Z it is recommended to:
- Determine the most appropriate lighting configuration;
- Specify the total length of the unit;
- Specify if the power supply is on the left or on the right;
- Specify the position of the bedside table;
- Specify the electrical services deemed necessary

These data will be reviewed and processed by our Technical Department which will provide mechanical and electrical drawings related to the project, if necessary, adapting them to the building requirements and relevant regulations.
