| Headwall Units |

Skia



SKIA is registered in the Directory of Medical Devices of the Ministry of Health with assigned serial number 1117146 SKIA is a Medical Device marked CE according to Directive 93/42CEE and is manufactured and tested in Italy

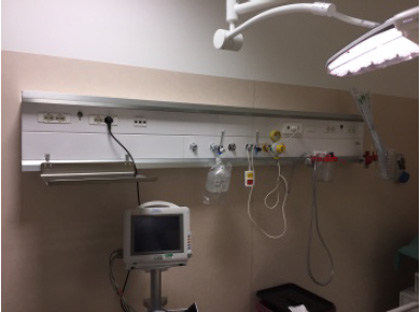

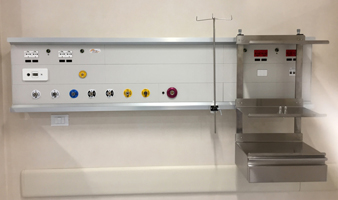

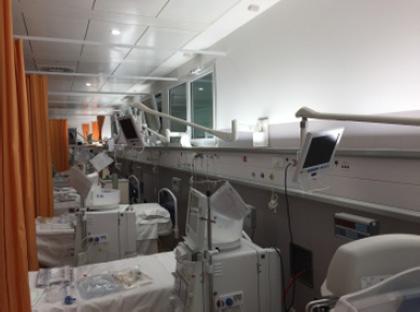

In areas requiring maximum efficiency, speed and precision, everything has to be on hand: tools, machines, sockets, must be easily accessible and readily identifiable to avoid mistakes. SKIA was designed to respond to this need, a compact and versatile technical unit. A rich set of sockets, data sockets and medical gas outlets are distributed across the front in an ergonomic way, to enable easy identification and use. SKIA is made in three versions: wall mounted, hanging from the ceiling or fixed to the floor by uprights

EQUIPMENT AND SYSTEMS
SKIA is an electric unit, ready to be connected to a central point, with sockets and switches already wired to the central terminal connection.
The electrical equipment can be chosen from among all the series available on the market, without any constraint except to verify its compatibility, in terms of structural size, with the structure and the size of SKIA.

BODY

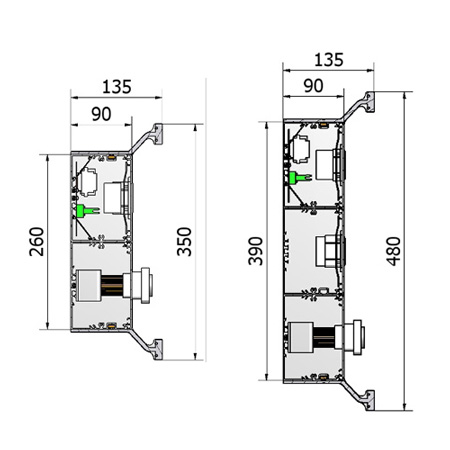

The main body is made from the composition of extruded aluminium profiles, closed on the front by a snap on cover. The profiles contain and distribute separately, low voltage, very low voltage and medical gases. Each profile is locked individually and independently by its snap on cover; this enables to access the technical space and the wiring by simply removing a single panel.

LIGHT SOURCES
LED lighting is made with high-efficiency modules. LED Modules are sized by our technical office to provide the best light emissions based on the characteristics of the environment.

modules are installed in the unit, which guarantee a very long life of the product with high luminous efficiency and low consumption (more light generated with less power). The light is clear and brilliant, the perception of the human eye is of natural illumination. The color temperature is calibrated to provide the best compromise between patient well-being and the operational need of the ward. Light emission, on request, can be dimmable by button, DALI protocol, 1-10V switch, or smartphone/tablet APP.

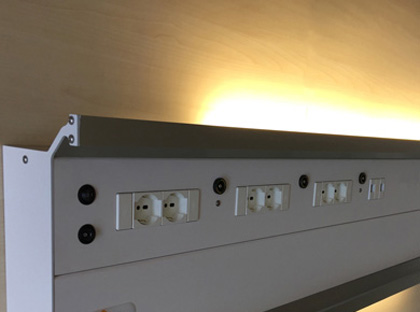

Indirect lighting is supplied by LED Modules with a polycarbonate cover sheet, with different power and length according to the needs and the size of the unit. The reading light, with a polycarbonate optical system, is also made with LED Modules. The light for visits and examinations can be made with a lamp with a swivel arm with three joints that can be attached by means of a sliding clamp or fixed directly to a preferred position. Finally, with SKIA, there is the possibility to fit a strip of blue LEDs to help with orientation during the night hours.





ACCESSORIES

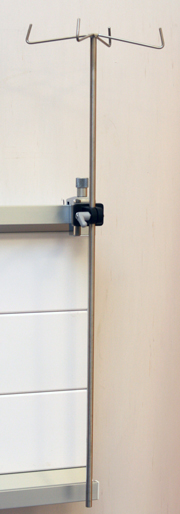

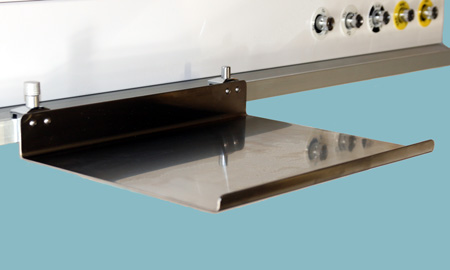

For top and bottom closure, SKIA has an extruded aluminium profile with a terminal track, allowing the installation of equipment and accessories, such as shelves, drawers, monitors, blood pressure monitors, lamps and anything else needed for the patient's benefit,
