Xenia

Xenia is registered in the Directory of Medical Devices of the Ministry of Health with assigned sequence number 1117257. Xenia is a Medical Device marked CE according to Directive 93/42CEE and is manufactured and tested in Italy

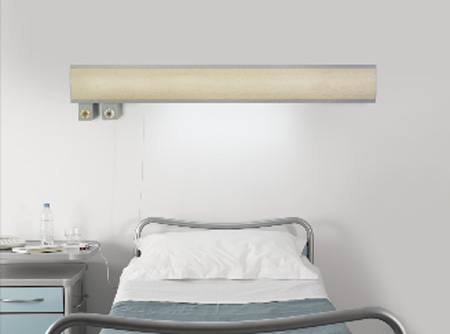

XENIA is added to the Dune horizontal bed head equipment catalogue as an element characterised by extreme attention to design and finishes and the possibility to customise the colour of the product. Like all the articles in the series, XENIA also presents itself as an architectural piece of furniture, with its laminate front that covers all the typical facilities of a bed head unit, lighting included.

XENIA is a set of extruded aluminium profiles, assembled with a high pressure laminate front cover in various finishes. In the upper profile there is space for the components for indirect and night lighting, while in the lower one are installed both the necessary electrical equipment and the components for direct lighting. Boxes for the terminal units of the medical gas systems complete the range of accessories.

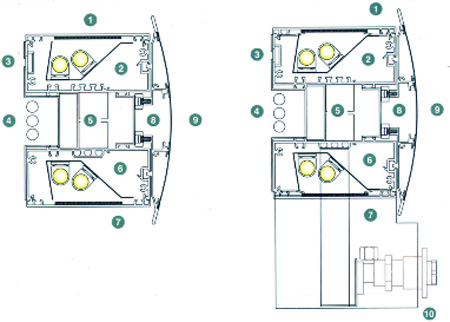

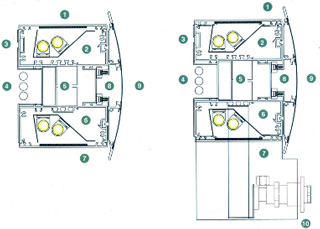

Technical details:
1. Top cover with indirect light plate
2. Compartment housing for LED indirect lighting
3. Bracket for wall mounting
4. Passage area for medical gas pipes
5. Compartment housing for electrical components
6. Compartment housing for direct light lamps and electrical and communication equipment
7. Bottom cover with direct light plate
8. Front bracket
9. Front cover

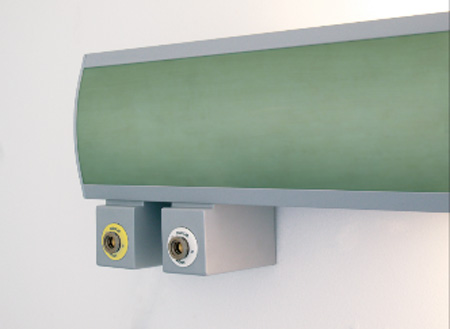

10. Box for single medical gas outlets

LIGHTING
LED lighting is made with high-efficiency modules. LED Modules are sized by our technical office to provide the best light emissions based on the characteristics of the environment.

modules are installed in the unit, which guarantee a very long life of the product with high luminous efficiency and low consumption (more light generated with less power). The light is clear and brilliant, the perception of the human eye is of natural illumination. The color temperature is calibrated to provide the best compromise between patient well-being and the operational need of the ward. Light emission, on request, can be dimmable by button, DALI protocol, 1-10V switch, or smartphone/tablet APP.

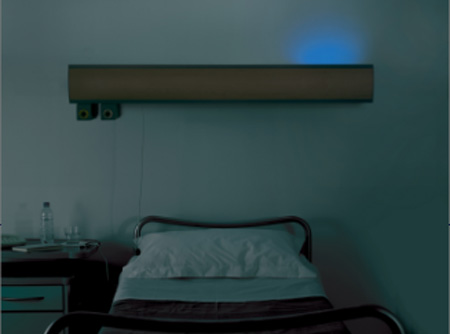

General indirect lighting is usually supplied by LED modules with different power and length according to the needs and the size of the unit. A snap-fixed cover sheet of lined polycarbonate protects the lamps from dust. The reading and medical examination light is usually supplied by LED Modules. With Xenia there is also the possibility to mount a blue LED strip, to help with orientation during the night hours.

BODY AND FRONT PANEL
The main body is consists of two extruded aluminium profiles, closed by snap-on covers and head ends made of laser cut aluminium, all painted with epoxy cured, RAL 9006 colour. The front panel can be chosen in a wide range of finishes and colours and is made of high-pressure laminate, closed between two lateral wings of extruded aluminium painted the same colour as the body. The ends of the front panel are closed by ABS head caps painted Ral 9006.
In the standard version the central body has a length of 1500 mm; the front cover has a length of 1700 mm.

INSTALLATION
Xenia is fixed to the wall, using screws and wall plugs suitable for the type of masonry at a recommended height of 1750 mm. (Xenia axis) from the ground.

EQUIPMENT AND SYSTEMS
Xenia is an electric unit ready for connection to a central point, with sockets and switches already wired to the central terminal connection. The electrical equipment can be chosen from among all the series on the market, without any constraint except to verify its compatibility, in terms of mechanical size, with the structure and the size of Xenia.

PLANNING
For the proper identification of the primary characteristics of Xenia it is recommended to:
- Determine the most appropriate lighting configuration;
- Specify if the power supply is on the left or on the right;
- Specify the position of the bedside table;
- Specify the electrical services deemed necessary;
- Specify the finish of the front panel

These data will be reviewed and processed by our Technical Department which will provide mechanical and electrical drawings related to the project, if necessary, adapting them to the building requirements and relevant regulations.
